Design Highlights

• Hammer to Drill a hole of dia 227-305 mm (9" 12").

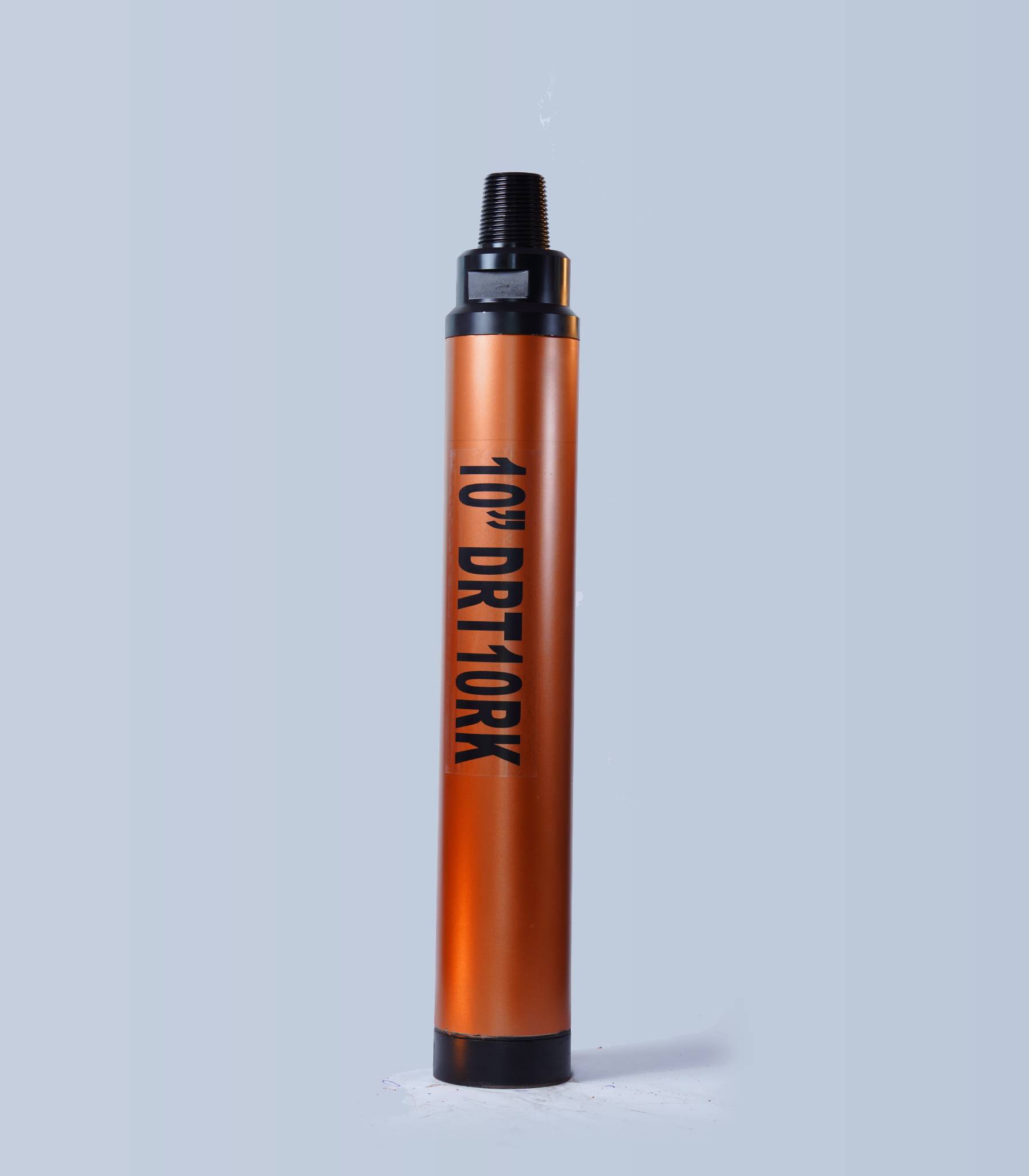

• DRT10RK is a valve less type hammer designed for high performance at low operating air pressures.
• Rk1 bit has a strong robust design to withstand heavy duty application and it does not use foot valves which reduces the possibility of hammer failure.
• Hammer is available as standard with pin back head thread (4 1/2 API REG PIN, D17 Thread 4ΤΡΙ ΡΙΝ).
• DRT10RK Hammer maximizes energy output and reduces service requirements.
• Wear Sleeve is reversible.
• Three Start threads on Top sub and Drive sub ensure easy coupling/uncoupling of hammer.
• All critical internal components are heat treated under strict control to maximize tool longevity.
• An overall cost-effective and user friendly tool for use in the most demanding conditions.
