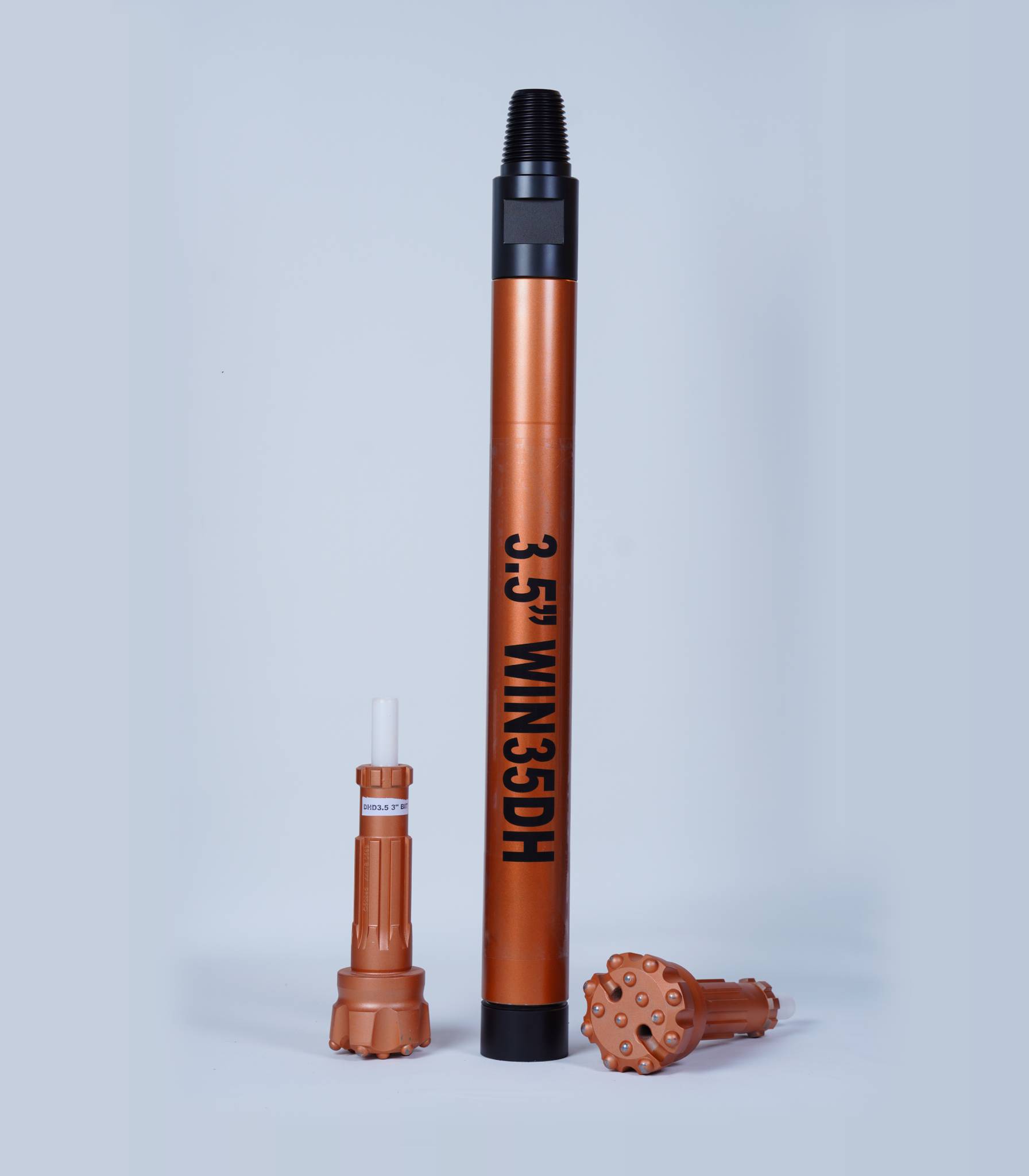

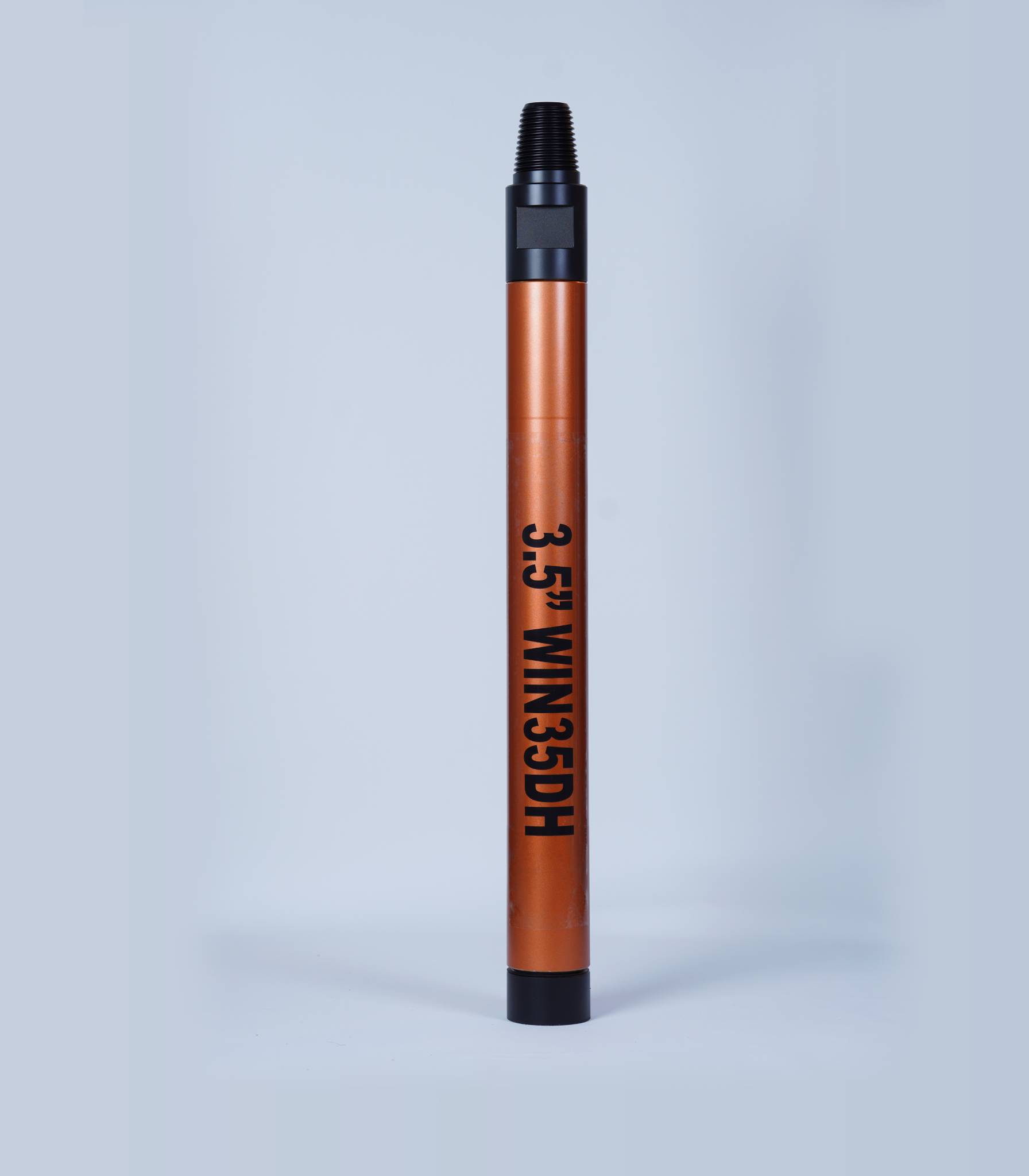

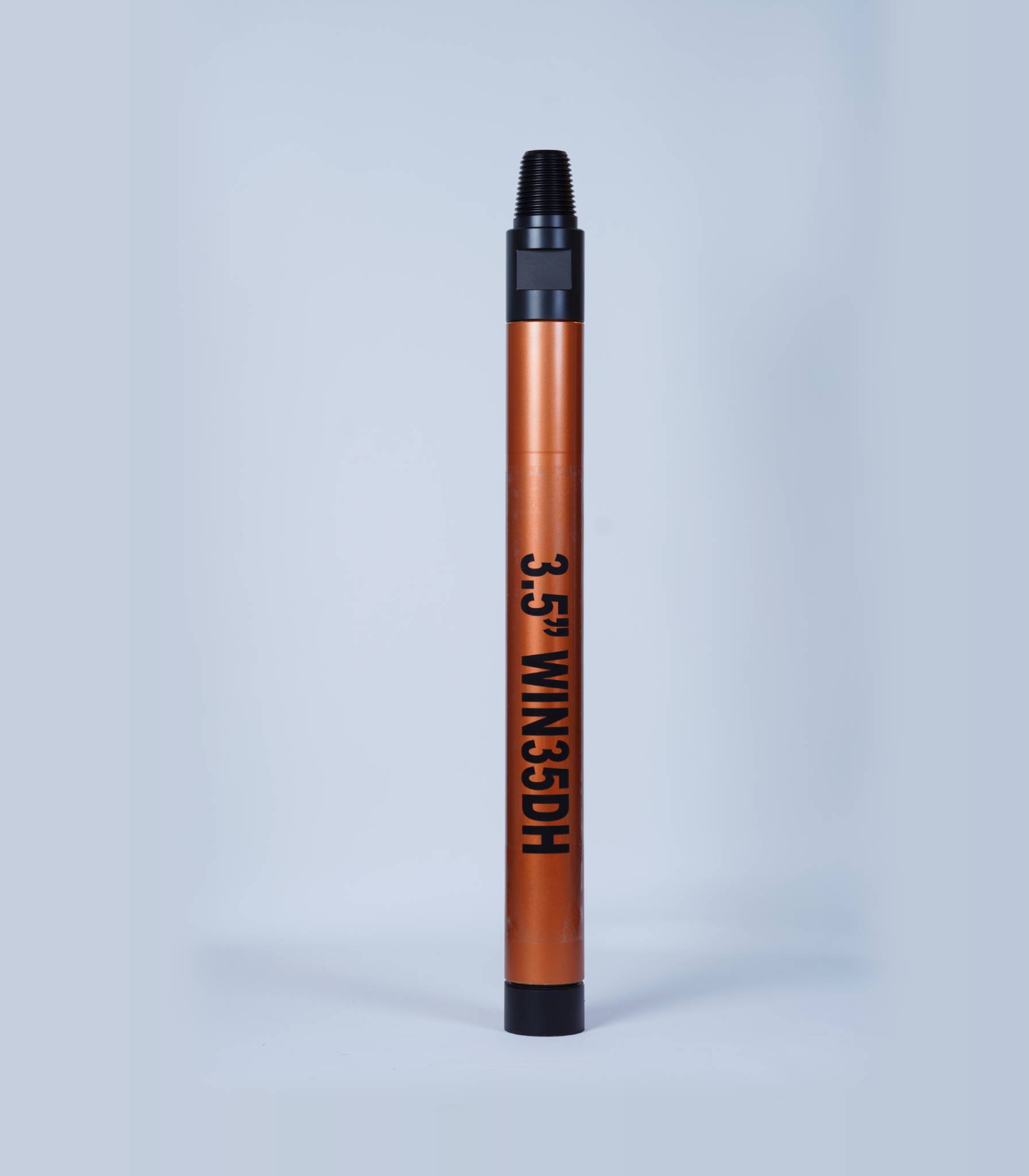

3.5" WIN35DH Hammer
Design Highlights
- Hammer to Drill a hole of dia90 - 115 mm (3 ½”- 41/2”).
- WIN35DH is a valve type hammer designed for high performance at low operating air pressures.
- DHD3.5 bit has a strong robust design with foot valve to withstand heavy duty application.
- WIN35DH Hammer maximizes energy output and reduces service requirements.
- Wear Sleeve is not reversible.
- Single Start threads on Top sub and Drive sub ensure easy coupling/ uncoupling of hammer.
- All critical internal components are heat treated under strict control to maximize tool longevity.
- An overall cost-effective and user friendly tool for use in the most demanding conditions.
Applications
- Construction
- Quarry
Hammer Specification
| Sl.No. | Description | Unit | Dimension |
|---|---|---|---|
| 1 | HAMMER LENGTH W/O BIT | mm | 776.3 |
| 2 | HAMMER OUTSIDE DIA | mm | 78.0 |
| 3 | HAMMER WEIGHT | kg | 21.0 |
| 4 | CYLINDER BORE | mm | 63.7 |
| 5 | PISTON STROKE | mm | 80.0 (approx.) |
| 6 | PISTON WEIGHT | kg | 4.0 |
| 7 | HOLE SIZES | mm | 90-115 |
| 8 | WRENCH SIZE A/F | mm | A/F 57.0/W-40.0 |
| 9 | SUITABLE SHANK | -- | DHD 3.5 (With Foot Valve) |
3.5" WIN35DH Hammer Air Consumption
| PSI | 100 | 150 | 200 | 250 |
|---|---|---|---|---|
| CFM | 75 | 135 | 205 | 270 |
